Please Note :- All figures in accordance with BS-1290/BS EN13414/1-3 “UNIFORMED OF LOADING” Safety factor 5:1
INPUTS
Working Load Limits for using Steel Core rope of classes 6 x19, 6x 36 and 8x36, and having ferrule secured eye terminations.

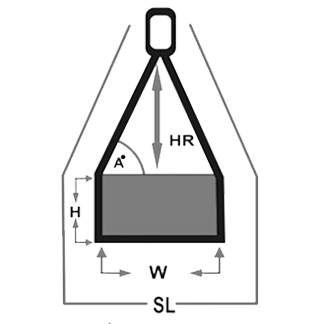

Abbreviation :
- ANGLE = THE SLING ANGLE
- LOAD = MAX GROSS WEIGHT NEED TO LIFT.
- HR = HEAD ROOM HEIGHT.
- SL = SLING LENGTH.
The above SWL limits apply only to normal conditions of use in straight configurations with equally loaded legs, and are based on the “Uniform Load Method of Rating”. Never Exceed the Manufacture’s recommended SWL limits.
